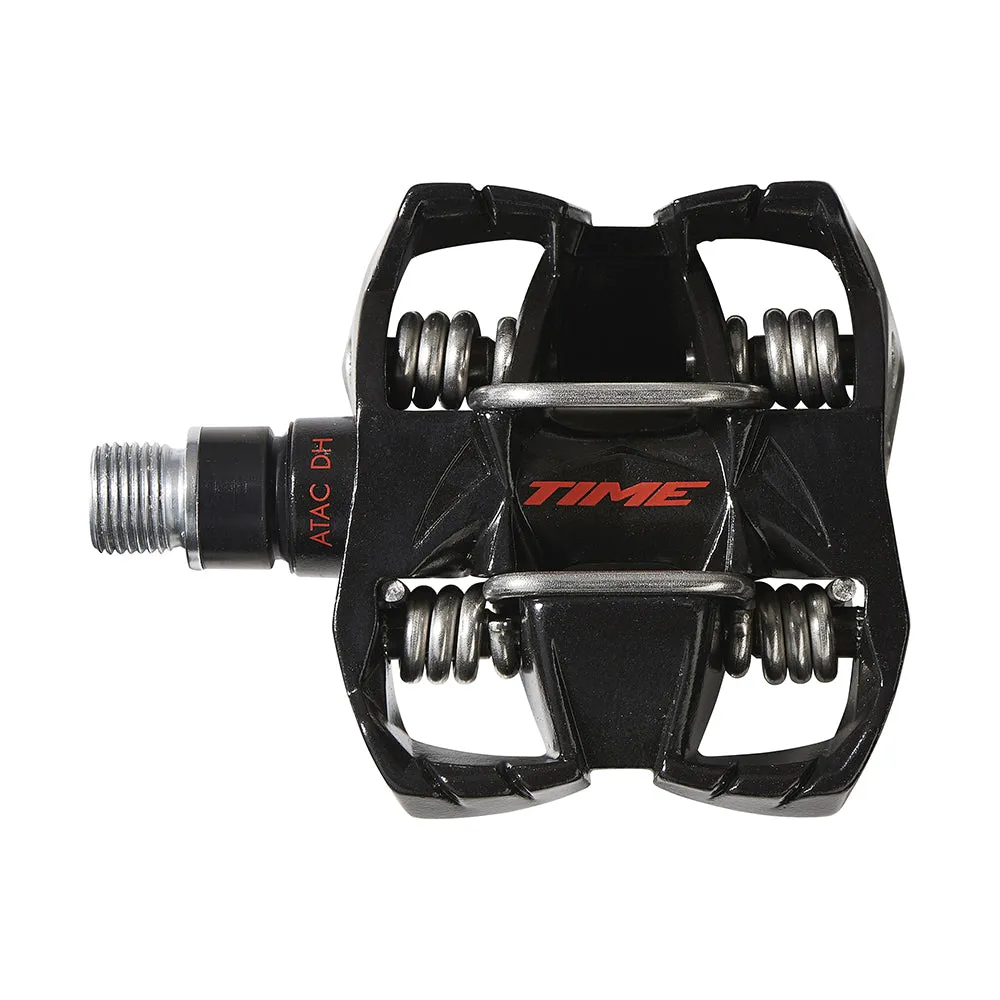

Time DH 4 Pedal

The DH 4 is built with an aluminum body and over sized axle to handle the roughest trail conditions and biggest descents. TIME's famous easy entry and exit system allows riders to easily put a foot down when needed and clip back in fast. The open, self-cleaning design keeps the pedal clean so its function is not compromised by dirt, debris, or mud.

FEATURES

• Rugged for downhill performance.
• Easy pedal entry and exit to put foot down when needed.
• Cleats included with all pedal purchases.

SPECIFICATIONS

Axle component Oversized hollow steel axle
Bearings Steel
Body component Aluminum
Cleats ATAC cleats
Pedal stack height 19mm
Angular freedom n/a
Contact surface area n/a
Distance pedal spindle / crank arm 54mm
Lateral freedom 5mm
Release angle 10° with ATAC Easy cleats, 13 or 17° with ATAC cleats
Tension no
Threading 9/16 - 20 inch
Weight (per pedal) 238g
Color (Pedal) Black
Accessories ATAC cleats
Intended use Enduro/Trail/DH
Part Weight (g) 238
