Optimised SOFTGRIP braid technology.

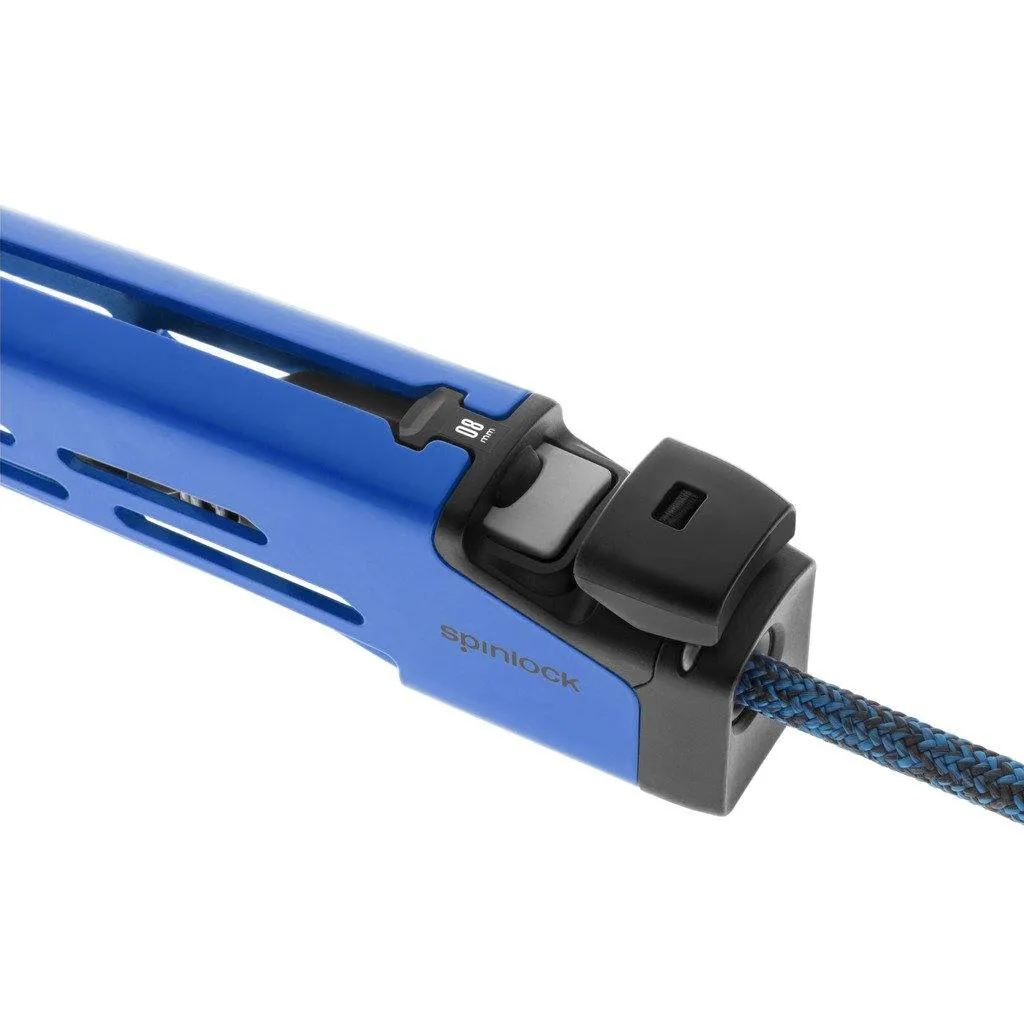

Drawing on experience in both mechanical and textile product design the new XTX Soft Grip Clutch uses a combination of new materials to offer mid load rope holding in a lightweight, compact device. Using an innovative new braided ‘soft grip’ technology to engage and hold a loaded line, the XTX benefits from being very ‘kind’ to the rope cover with a controlled and easy release.

•  Ultra-lightweight mid-load rope holding
•  Optimised SOFTGRIP braid with high-performance braid anchor technology
•  Gentle on rope covers - increase the lifecycle of your ropes
•  Neat, retracting toggle for fingertip control of clutching power
•  Controlled and consistent release across full range of loads

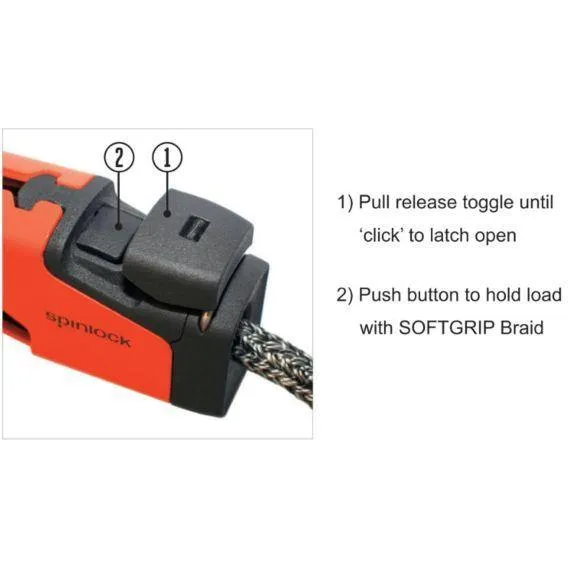

•  Push button clutch activation with lock-open indicator
•  Full enclosed body protects against accidental release
•  Small footprint and very low profile with no handle rotation space required
•  Simple, versatile installation – 2 fasteners for deck, bulkhead, rig or tunnel mounting
•  Remote release capability
•  Easy set-up, no performance tuning required
•  On-deck access for cleaning or replacing SOFTGRIP diameter changes

Ropes 8 - 12mm (5/16”-1/2”)
Loads up to 1200kg (2645lbs)

Replacement Grips available for all size - XTX-GRIP
