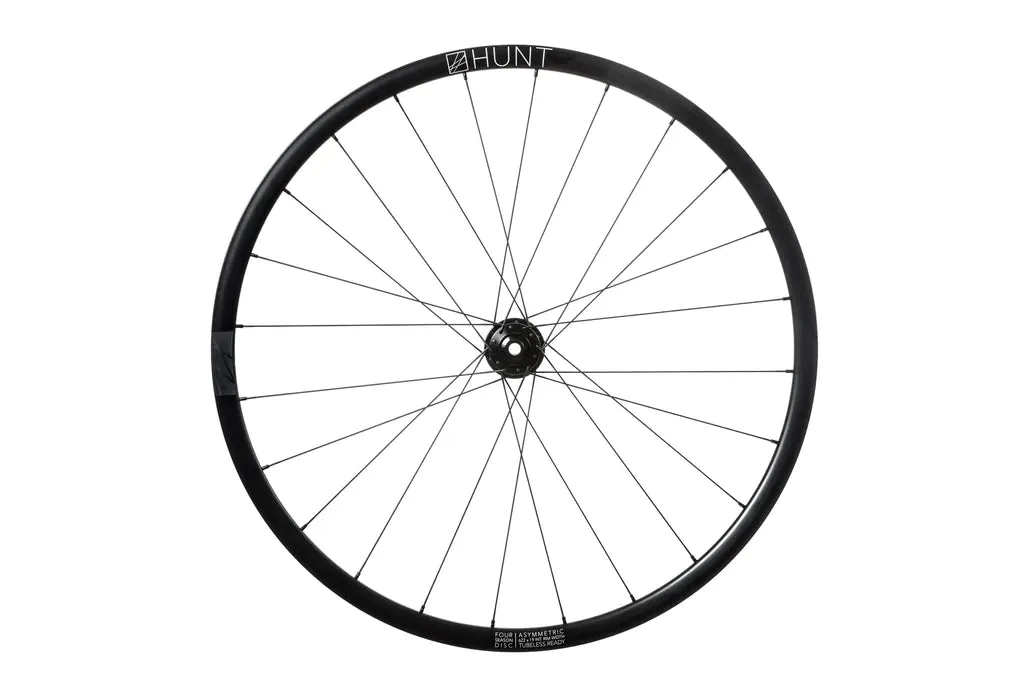

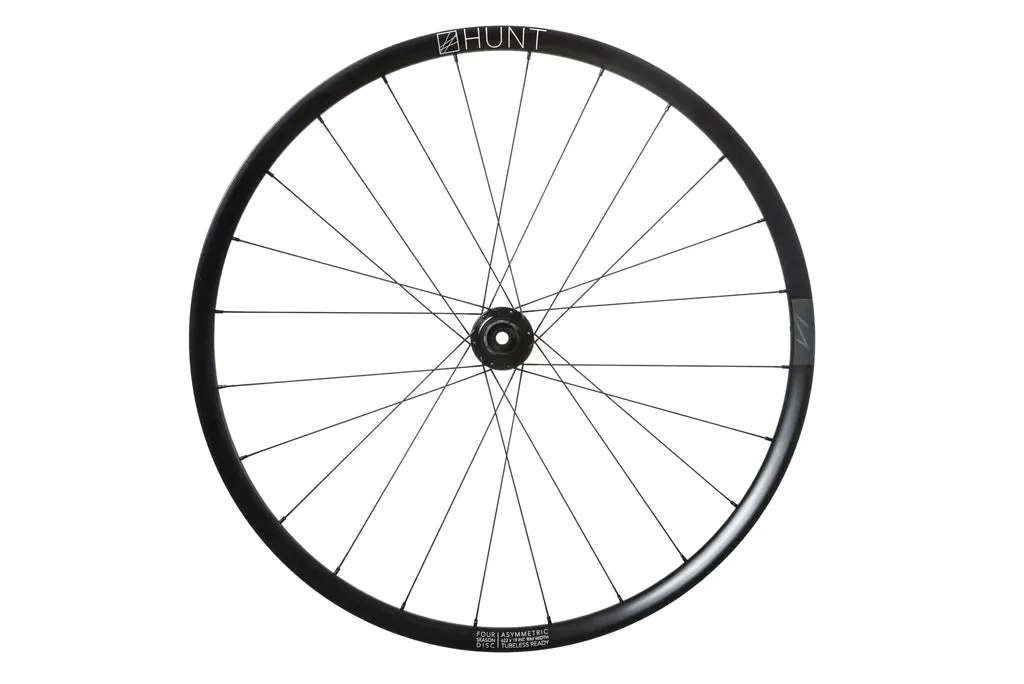

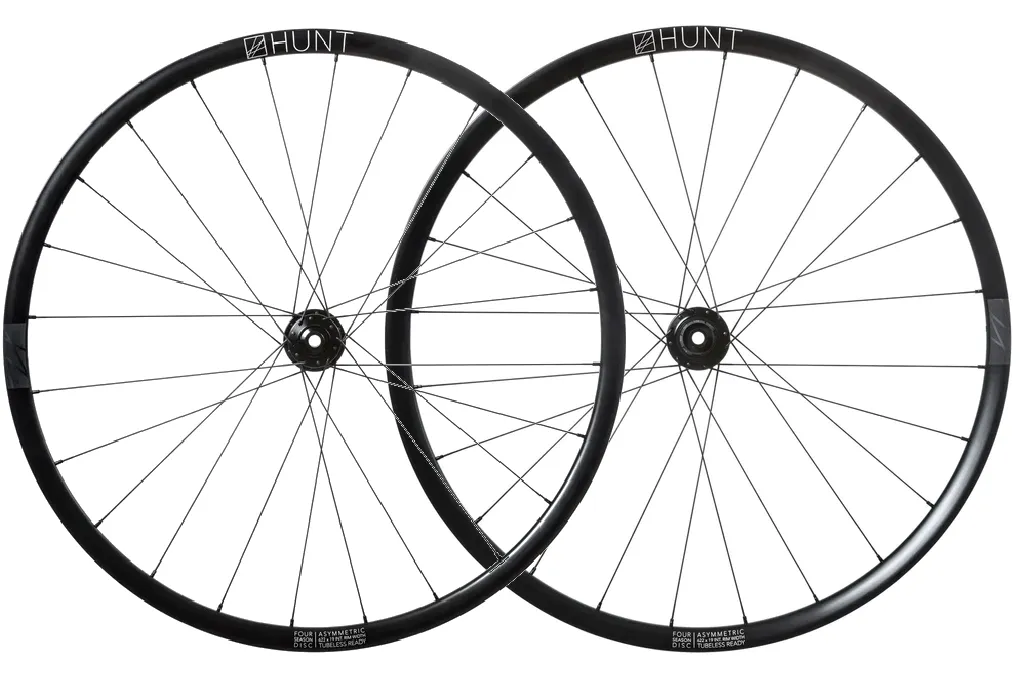

Hunt 4 Season Disc Wheelset
THE ORIGINAL & AWARD-WINNING, YEAR-ROUND DISC BRAKE WHEELSET. NOW WITH NIGHT-SAFE REFLECTIVE
This is the wheel that started it all. We've updated the specs over the years, but the principle has always remained the same: maximise durability whilst minimising any drawbacks in riding characteristics. A wheel not just designed to endure the worst two seasons but deliver performance reliably all year round.
Back in 2015, we realised that the specification and weights of the existing available 700c road/CX disc wheels were not ideal for a performance bike that would be used in all weather conditions. A lightweight, durable year-round disc wheelset was one of our first projects, and the outcome was the award-winning HUNT 4 Season Disc wheelset.
The 19mm (internal) rim profile is designed for 25-30mm tyres but will work well from 23-45mm. (check compatibility with tyre manufacturer).
- Tubeless-ready – designed to work excellently with normal clincher tyres and tubes or tubeless tyres. Hunt Black Shield tubeless tape fitted
- Wide 19mm rim bed creates a wide tyre profile. Great with 23 tyres, ideal for 25, 28 and cross tyres up to 45c. Also work excellently with clincher tyres and tubes.
- Hand-built and finished, inclusive of a full quality control inspection
- Please note: this wheelset was originally destined for production bikes and, as such is delivered OE
- Total weight: 1588g
Rims:

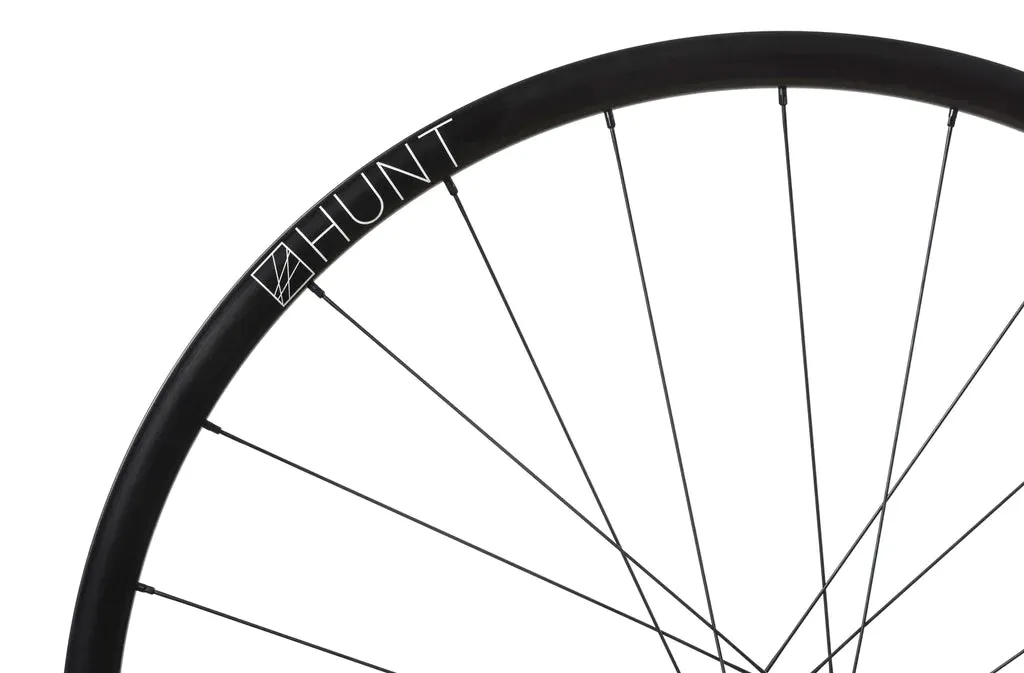

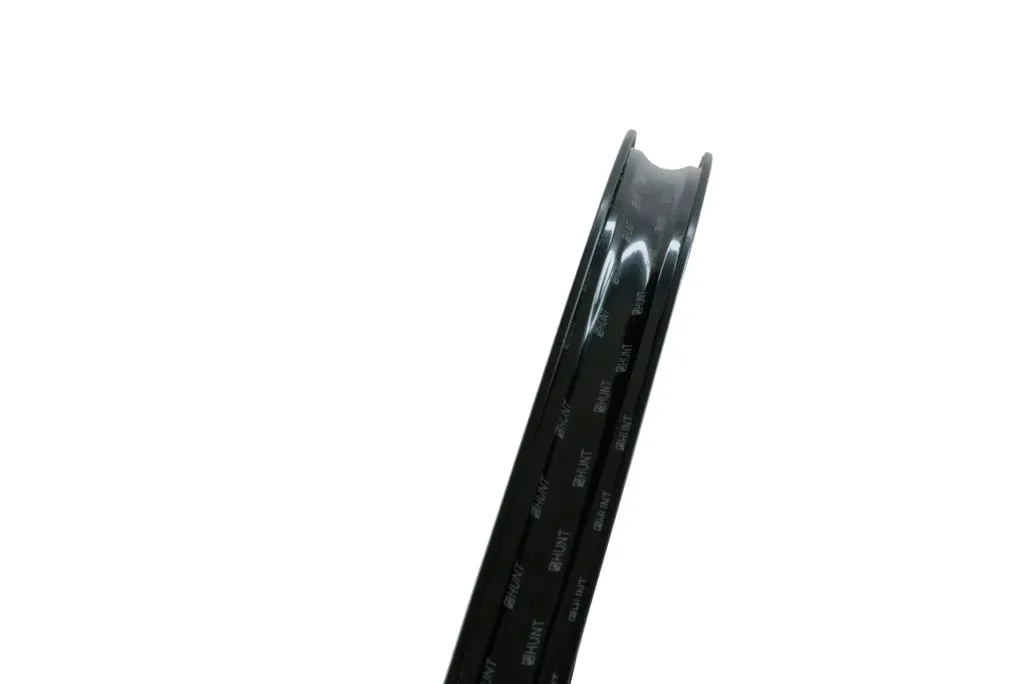

- Rims | 700c HFR (High Fatigue Resistance) heat-treated alloy. Tubeless-ready. Disc Specific. Asymmetric for a highly-durable wheel build. H-lock bead-seat for easy and secure tubeless installation. Now featuring a black night-safe reflective decal on rim – perfect for visibility during low-light/night riding.
- H-lock bead-seat up-kicks for easy and secure tubeless installation
- Hooked
- Inner width: 19mm
- Outer width: 24mm
- Depth: 26mm
- Tubeless-ready
- Disc Specific
- Asymmetric spoke pattern for a highly-durable build
- H-lock bead-seat for easy and secure tubeless installation

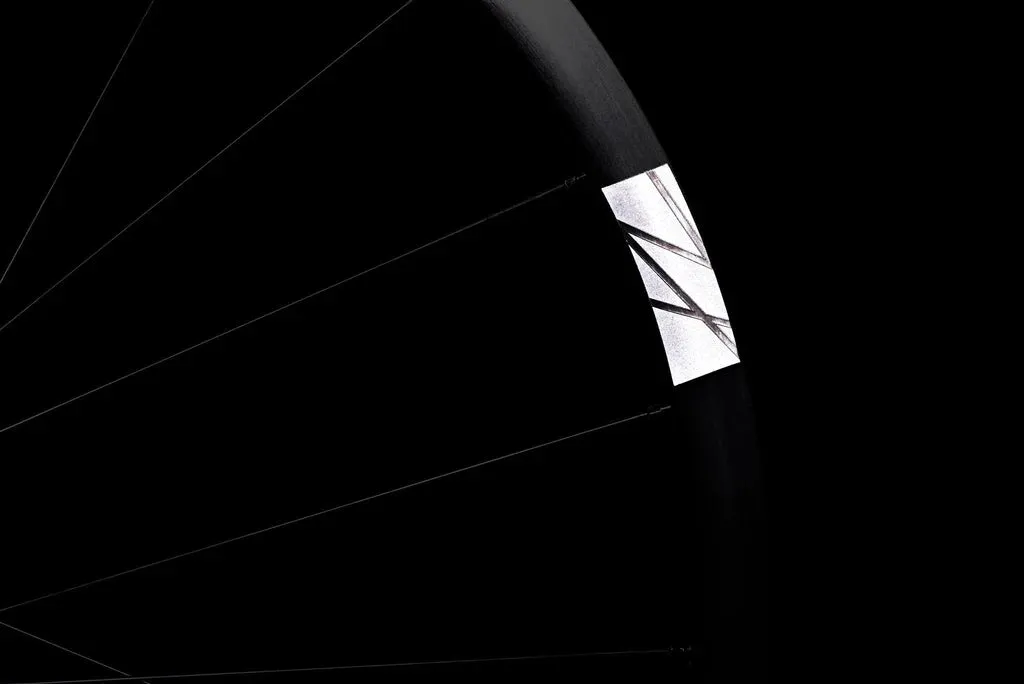

- Matt black anodized finish with Laser etched graphics for excellent durability. Now featuring a black night-safe reflective decal – perfect for visibility during low-light/night riding
Hubs & spokes

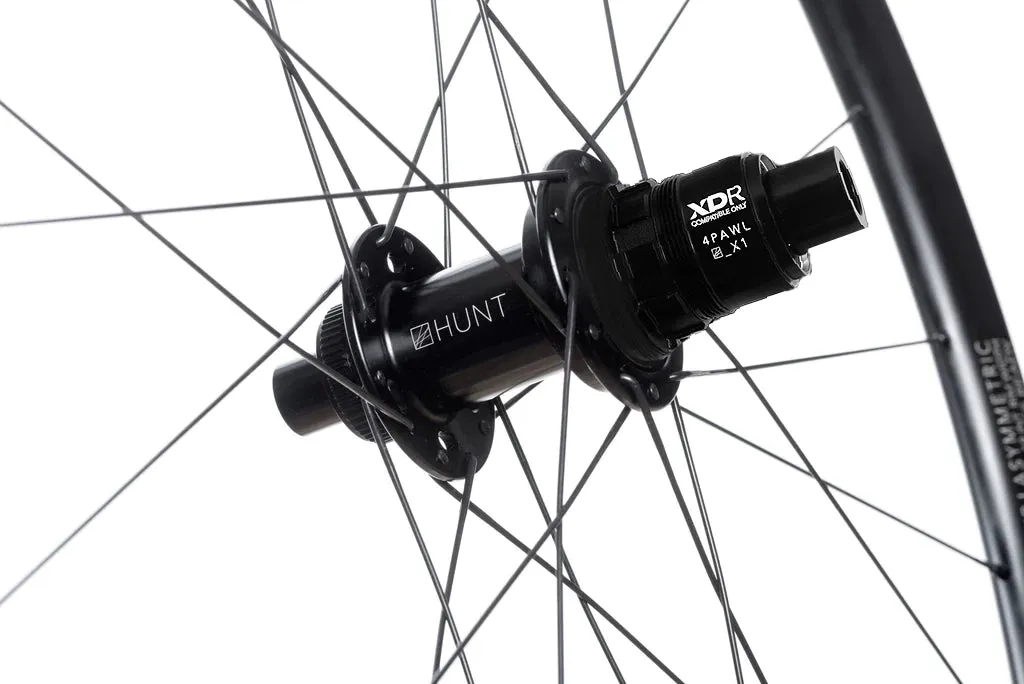

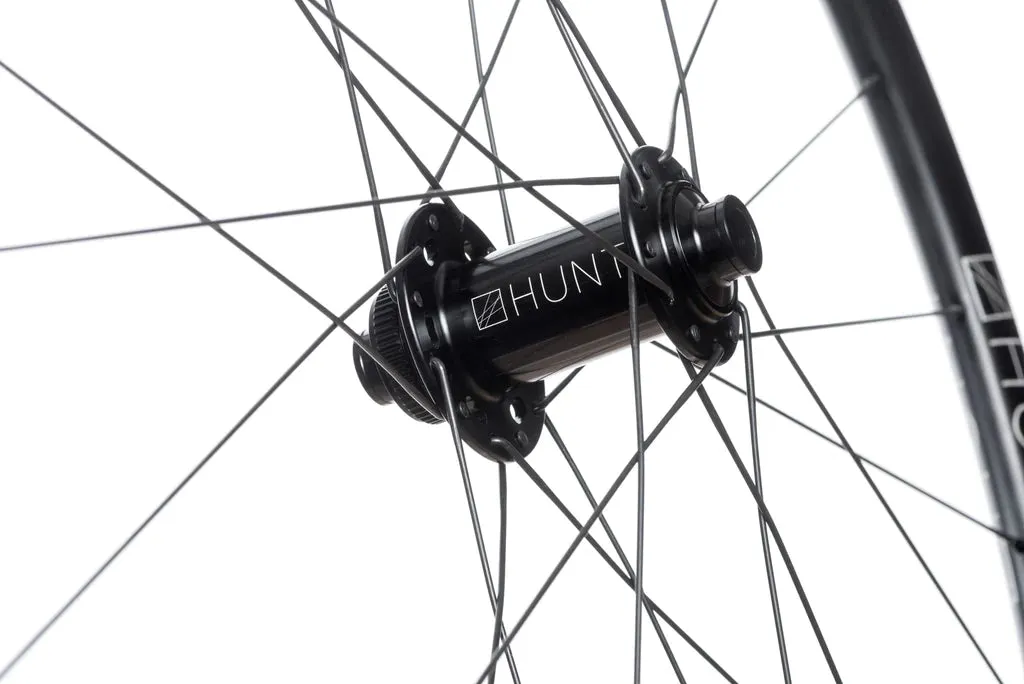

- Hubs | HUNT 4 Season Disc J-bend spoke hubs with extra bearing shielding. FastEngage 4-pawl freehub, for class leading engagement. Centre-lock disc mount.
- 10° FastEngage 4-pawl freehub
- Freehub type: SRAM XD / XDR
- Brake type: Centre-lock disc mount
- J-bend cold drawn
- Made from high grade T302 (18/10) stainless steel wire by Sandvik Sweden
- 24 spokes laced 2 cross front and rear
- Triple butted 2.0-1.6-2.0 (then 2.2 at the head for the patented Pillar Spoke Re-enforcement).
- Spoke length front: 280mm / 284mm (disc side/non-disc side)
- Spoke length rear: 281mm / 283mm (drive side/non-drive side)
- Front axle: 12 x 100mm
- Rear axle: 12 x 142mm
- Brass nipples for anti-corrosion resistance
- Square body for external adjustment and hex head for easy internal adjustment/tensioning
- Nipple length: 12mm
- Nipple gauge: 14
